| Dimensions | 72 × 81 × 209 cm |
|---|---|
| Temperature | -18/-21°C |
| Capacity (l) | 700 |
| Doors | 1 |
| Cooling unit | plug-in unit |
| Capacity | internal capacity: GN 2/1 racks |
EFB/01

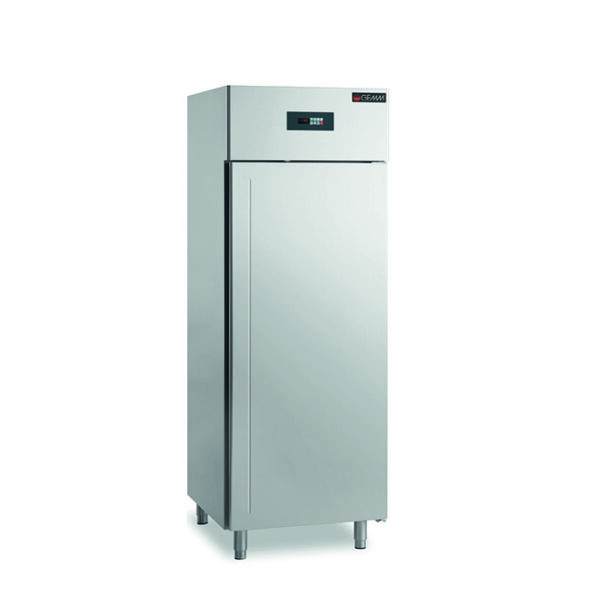

GN 2/1 NEGATIVE UPRIGHT CABINET – Freezer upright cabinet for GN 2/1 racks. Prearranged for remote condensing unit with valve system on request.
| Structure | made in stainelss steel |
|---|---|
| Technical compartment position | upper technical compartment |
| Cooling system | ventilated cooling system |
| Electronic | 2.8'' touch control panel, digital display |
| Defrost | automatic defrosing system defrosting system with hot gas |
| Evaporation of condensate water | automatic condensate evaporation |
| Fittings on request | on request: prearranged for remote system (R452A gas valve) |
| Included | supply with: 3 GN 2/1 shelves |
| Insulation thickness | 60 |
| Pitch | 65 |
| Positions on racks | 19 |
| Kind of lock | YES |
| Fan speed control | NO |
| Humidity control | NO |
| Gas | R290 |
| Supply voltage | 1x230V ~ 50Hz |
| Climatic class | 5 |
- 45000500 - GN 2/1 shelf
- 45000515 - GN 2/1 stainless steel shelf
- 45001550 - Pair of runners for GN 2/1 shelf
- 45000530 - Pedal for single door
- 45000540 - Set of Ø 100 castors
- 45000543 - Pastry structure for 19 60x40cm trays (65 mm pitch) each door(overprice)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
- 0-04_IMP_VAL_ARM_GN_BT - Prearranged version with valve system for low temperature equipment (deduction)
