| Dimensions | 160 × 155 × 243 cm |
|---|---|
| Capacity | no. 1 carrello 800×1000 |
| Doors | 1 |
| Cooling unit | unità condensatrice remota |
| Blast freezing yield | +90/+3°C = Kg 200+90/-18°C = Kg 180 |
| Version | MAXI |

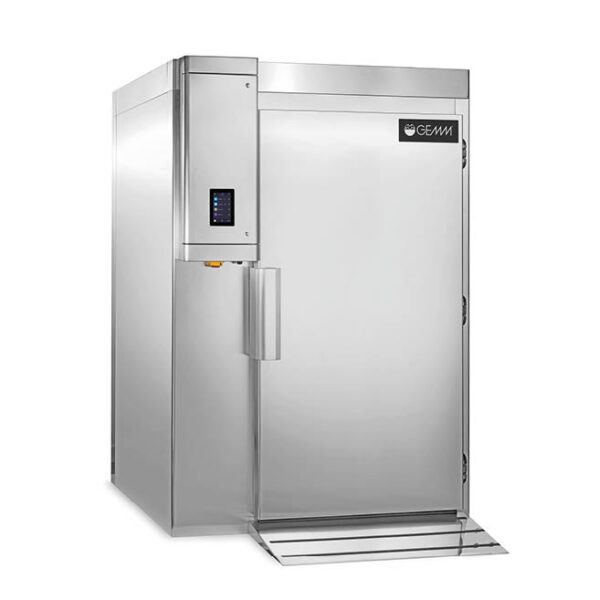

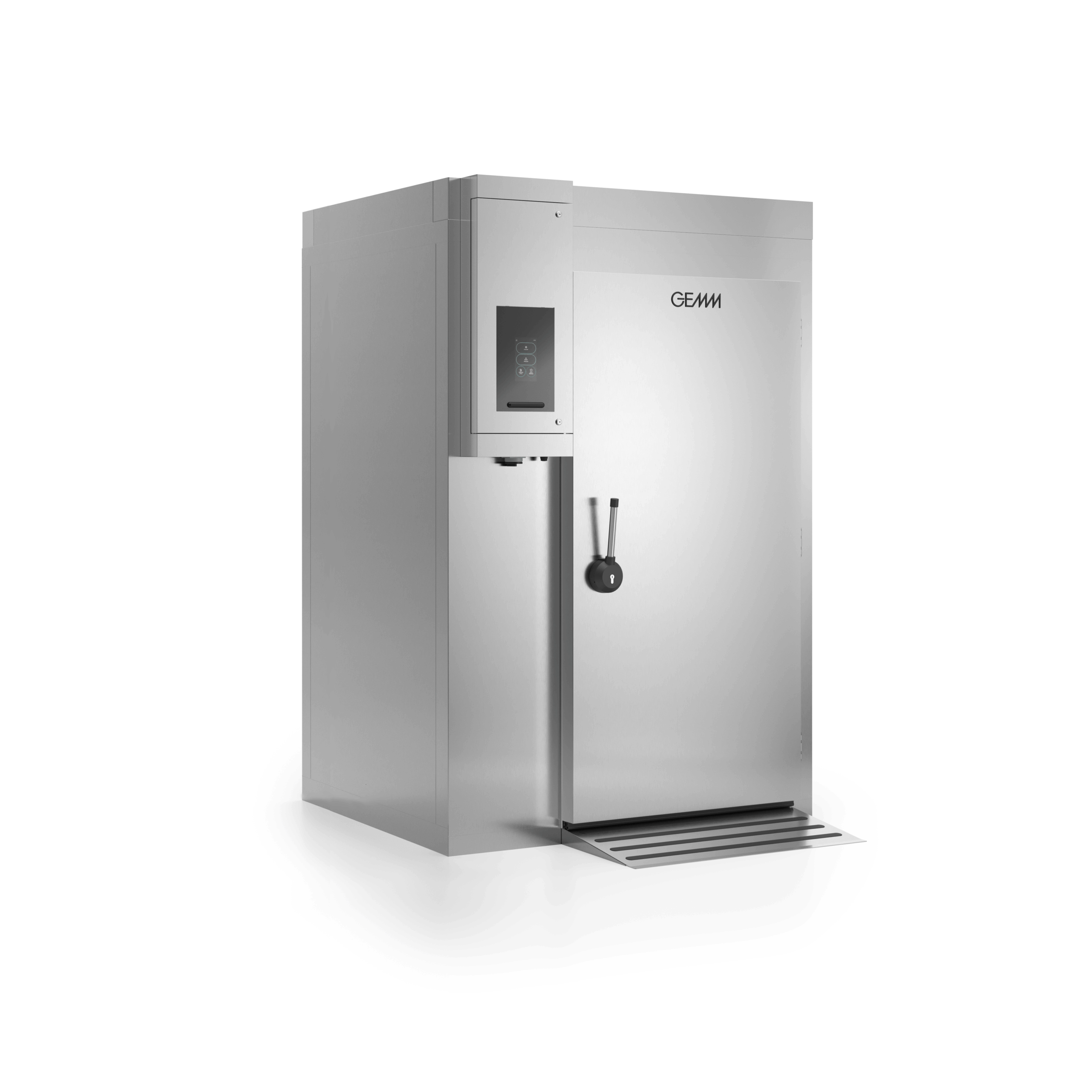

BCC/6015P
BLAST CHILLER / SHOCK FREEZER FOR 1 800×1000 TROLLEY – Blast freezer which gets rapidly lower the core temperature of foods: chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes. Equipped with multifunction and multilingual electronic board that allows, thanks to the 7” color touch-screen graphic display, to easily organize the working cycles, to set multiple functions and to have a complete controle on the blast chilling or freezing. The board is connected to the Wi-Fi device, via Cloud platform, to supervise and modify the operation of the equipment or to diagnose any problems remotely (PC, tablet or smartphone). Minimum air temperature -40°C.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
on top |
| Cooling system |
chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes, reaching minimum air temperature -40°C |
| Electronic |
7'' TOUCH screen control board |
| Defrost |
automatic defrosing system with hot gas |
| Evaporation of condensate water |
condensation drain pipe (prearrange water drain) |
| Included |
ramp for trolleys |
| Excluded |
trolleys |
| Insulation thickness |
100 |
| Kind of lock |
YES |
| Lighting |
YES |
| Fan speed control |
YES |
| Humidity control |
NO |
| Supply voltage |
3x400V ~ 50Hz |
| Climatic class |
5 |
- 45100953 - Additional pass-through door for BCC/6015(P) BCC/8027(P) (overprice)
- 45100927 - Water cooled condensing unit for BCC/4014P BCC/6015P (overprice)
- 45100945 - Low noise housing condensing unit for BCC/4014P BCC/6015P (overprice)
- 45100963 - 110 cm long stainless steel ramp BCC/6015(P) BCC/8027(P) (overprice)
- 45100973 - Left hinged door for BCC/6015(P) BCC/8027(P) (overprice)
- 45100917 - Winter kit for remote condensing unit BCC/4011 4014 4014P 6015 6015P 8027 (overprice)
- Version without condensing unit for BCC/4014P BCC/6015P (deduction)
- 40200560 - 60Hz frequency
