| Dimensions | 80 × 82 × 200 cm |
|---|---|
| Doors | 1 |
| Cooling unit | plug-in unit |
| Capacity | no. 15 GN 1/1 trays or 600×400 cm trays/shelves (no GN 1/1 shelves) |
| Blast freezing yield | +90/+3°C = Kg 70+90/-18°C = Kg 60 |
| Version | BASIC |
| Capacity (l) | 321 |

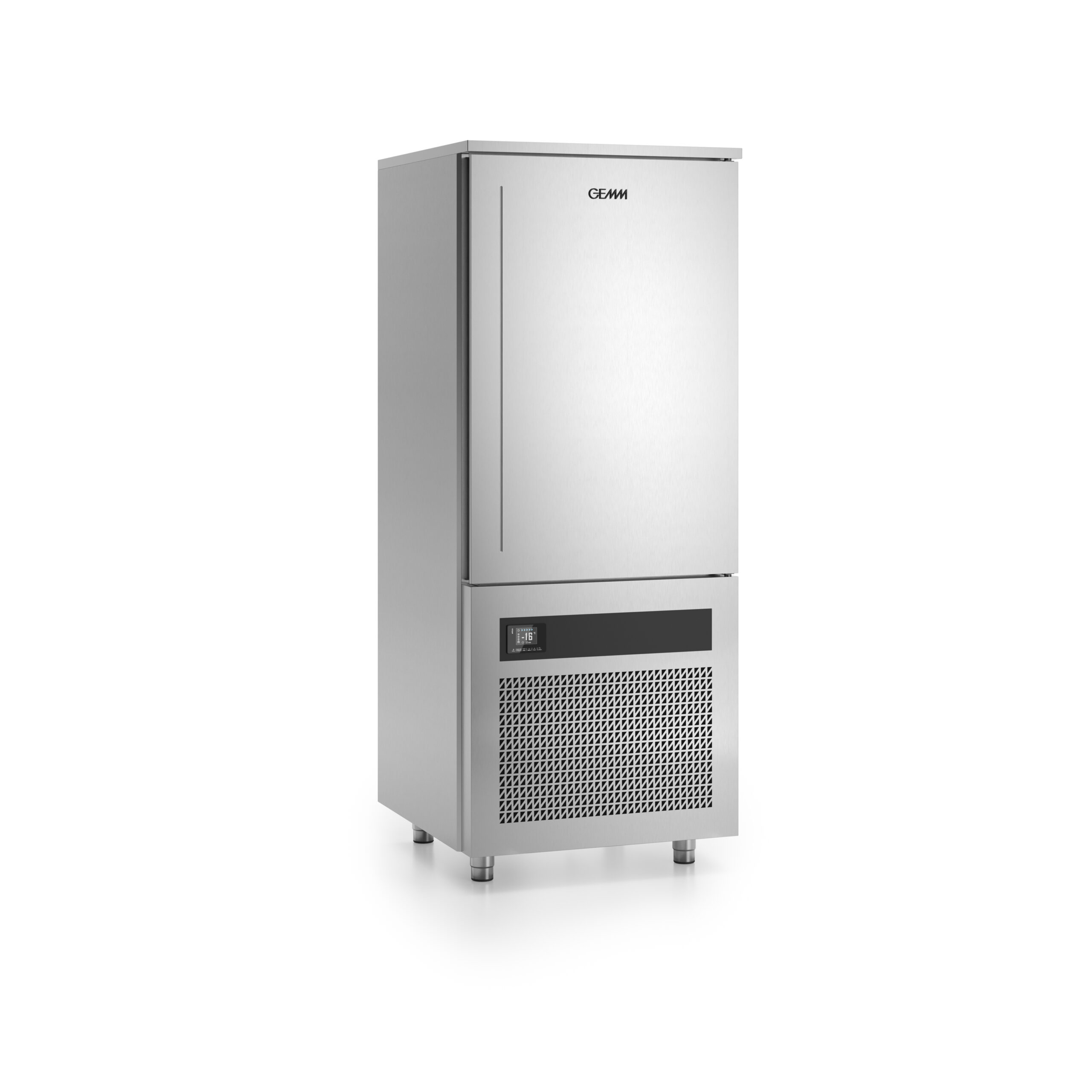

BCB/15
BLAST CHILLER / SHOCK FREEZER FOR 15 GN 1/1 / 600×400 TRAYS – Blast freezer which gets rapidly lower the core temperature of foods: chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes. Minimum air temperature -40°C
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
placed below |
| Cooling system |
chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes, reaching minimum air temperature -40°C |
| Electronic |
2.8'' digital touch control |
| Defrost |
automatic defrosing system with hot gas |
| Evaporation of condensate water |
automatic evaporation of condensate water |
| Fittings on request |
prearranged for remote system (R452A gas valve) |
| Included |
trays structure, 67 mm pitch |
| Excluded |
trays/shelves |
| Insulation thickness |
60 |
| Pitch |
67 |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
3x400V ~ 50Hz |
| Climatic class |
5 |
- 45100204 - Pastry structure for BCB(T)/15 60x40 cm trays pitch 16,5 mm (overprice)
- 45020503 - Pair of runners for cm 60x40 tray
- 45000540 - Set of 4 Ø 100 castors (overprice)
- 45100237 - Water cooled condensing unit for BCB(T)/10-15-24 (overprice)
- 45100240 - Stainless steel GN 1/1 shelf
- 45100242 - Stainless steel cm 60x40 shelf
