| Dimensions | 80 × 70 × 83 cm |
|---|---|
| Doors | 1 |
| Cooling unit | plug-in unit |
| Capacity | no. 5 GN 1/1 trays or 600×400 cm trays/shelves (no GN 1/1 shelves) |
| Blast freezing yield | 18 | 11 |
| Version | GAS R290 – LOW GWP |
| Capacity (l) | 90 |
BCB/05E
GAS R290 - LOW GWP

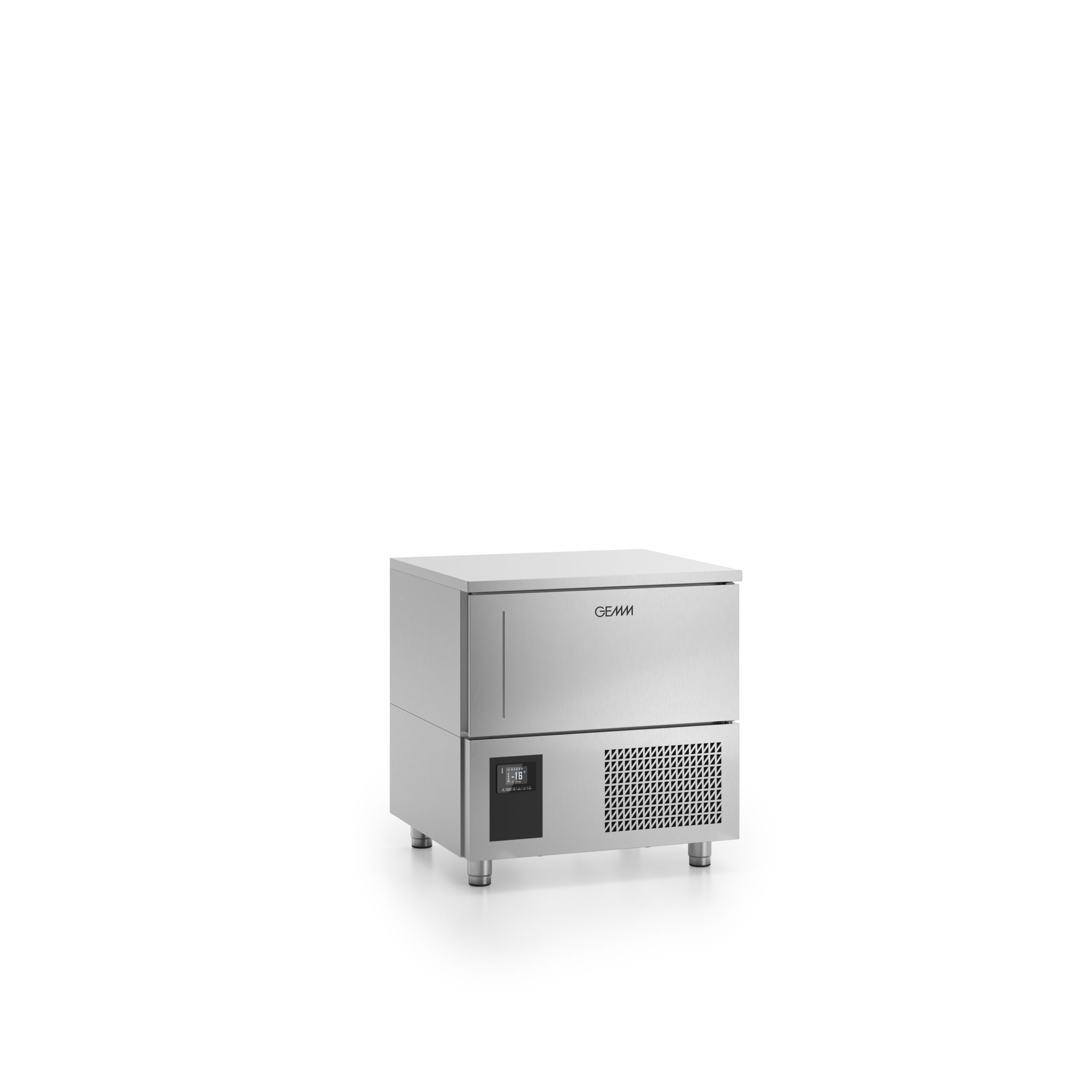

BUILT-IN INSTALLATION BLAST CHILLER / SHOCK FREEZER FOR 5 GN 1/1 / 600×400 TRAYS – Blast freezer which gets rapidly lower the core temperature of foods: chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes. Minimum air temperature -40°C.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
technical compartment placed below |
| Cooling system |
chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes, reaching minimum air temperature -40°C |
| Electronic |
2.8'' digital touch control |
| Defrost |
automatic defrosing system by pause |
| Evaporation of condensate water |
automatic evaporation of condensate water |
| Fittings on request |
on request: prearranged for remote system (R452A gas valve) |
| Included |
supply with: trays structure, 60 mm pitch |
| Excluded |
trays/shelves not included |
| Insulation thickness |
60 |
| Pitch |
60 |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 45100200 - Pastry structure for BCB(T)/05 60x40 cm trays pitch 16,5 mm (overprice)
- 45020503 - Pair of runners for cm 60x40 tray
- 45100240 - Stainless steel GN 1/1 shelf
- 45100242 - Stainless steel cm 60x40 shelf
- 45000540 - Set of Ø 100 castors
- 45000563 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
